View all Dimensions for Panel Air Filter
SPECTRE Panel Air Filter
Find Panel Air Filter by Dimension
| Part | Height | Outside Length | Outside Width | Air Filter Color | Air Filter Material |
|---|---|---|---|---|---|
|
SPA-0784
|
3.438 in (87.325 mm) |
10.938 in (277.825 mm) |
9.938 in (252.425 mm) |
Red | Cellulose Media |
|
SPA-2012
|
11.250 in (285.75 mm) |
7.563 in (192.1 mm) |
1.688 in (42.875 mm) |
Red | Cellulose Media |
|
SPA-2031
|
10.938 in (277.825 mm) |
6.625 in (168.275 mm) |
1.500 in (38.1 mm) |
Red | Cellulose Media |
|
SPA-2042
|
1.563 in (39.7 mm) |
11.438 in (290.525 mm) |
6.063 in (154 mm) |
Red | Cellulose Media |
|
SPA-2063
|
1.750 in (44.45 mm) |
9.313 in (236.55 mm) |
7.063 in (179.4 mm) |
Red | Cellulose Media |
|
SPA-2084
|
1.688 in (42.875 mm) |
13.438 in (341.325 mm) |
6.688 in (169.875 mm) |
Red | Cellulose Media |
|
SPA-2106
|
2.313 in (58.75 mm) |
8.813 in (223.85 mm) |
7.563 in (192.1 mm) |
Red | Cellulose Media |
|
SPA-2121
|
1.750 in (44.45 mm) |
12.688 in (322.275 mm) |
7.688 in (195.275 mm) |
Red | Cellulose Media |
|
SPA-2129
|
2.438 in (61.925 mm) |
12.375 in (314.325 mm) |
9.750 in (247.65 mm) |
Red | Cellulose Media |
|
SPA-2141
|
1.750 in (44.45 mm) |
10.625 in (269.875 mm) |
7.938 in (201.625 mm) |
Red | Cellulose Media |
|
SPA-2144
|
2.063 in (52.4 mm) |
12.125 in (307.975 mm) |
9.125 in (231.775 mm) |
Red | Cellulose Media |
|
SPA-2145
|
1.563 in (39.7 mm) |
12.250 in (311.15 mm) |
6.625 in (168.275 mm) |
Red | Cellulose Media |
|
SPA-2181
|
2.125 in (53.975 mm) |
13.750 in (349.25 mm) |
5.313 in (134.95 mm) |
Red | Cellulose Media |
|
SPA-2187
|
2.375 in (60.325 mm) |
10.000 in (254 mm) |
7.063 in (179.4 mm) |
Red | Cellulose Media |
|
SPA-2192
|
1.688 in (42.875 mm) |
12.313 in (312.75 mm) |
7.875 in (200.025 mm) |
Red | Cellulose Media |
|
SPA-2206
|
1.750 in (44.45 mm) |
9.313 in (236.55 mm) |
8.438 in (214.325 mm) |
Red | Cellulose Media |
|
SPA-2207
|
2.375 in (60.325 mm) |
11.500 in (292.1 mm) |
7.063 in (179.4 mm) |
Red | Cellulose Media |
|
SPA-2247
|
1.625 in (41.275 mm) |
13.813 in (350.85 mm) |
9.375 in (238.125 mm) |
Red | Cellulose Media |
|
SPA-2249
|
1.625 in (41.275 mm) |
11.000 in (279.4 mm) |
9.375 in (238.125 mm) |
Red | Cellulose Media |
|
SPA-2252
|
1.938 in (49.225 mm) |
11.375 in (288.925 mm) |
6.000 in (152.4 mm) |
Red | Cellulose Media |
|
SPA-2260
|
1.750 in (44.45 mm) |
12.500 in (317.5 mm) |
7.625 in (193.675 mm) |
Red | Cellulose Media |
|
SPA-2276
|
1.750 in (44.45 mm) |
13.438 in (341.325 mm) |
6.000 in (152.4 mm) |
Red | Cellulose Media |
|
SPA-2281
|
2.438 in (61.925 mm) |
14.000 in (355.6 mm) |
6.625 in (168.275 mm) |
Red | Cellulose Media |
|
SPA-2286
|
2.000 in (50.8 mm) |
11.375 in (288.925 mm) |
9.625 in (244.475 mm) |
Red | Cellulose Media |
|
SPA-2287
|
1.563 in (39.7 mm) |
11.375 in (288.925 mm) |
8.500 in (215.9 mm) |
Red | Cellulose Media |
|
SPA-2295
|
1.500 in (38.1 mm) |
11.438 in (290.525 mm) |
8.313 in (211.15 mm) |
Red | Cellulose Media |
|
SPA-2304
|
1.500 in (38.1 mm) |
8.625 in (219.075 mm) |
1.750 in (44.45 mm) |
Red | Cellulose Media |
|
SPA-2309
|
1.750 in (44.45 mm) |
11.875 in (301.625 mm) |
6.938 in (176.225 mm) |
Red | Cellulose Media |
|
SPA-2326
|
2.188 in (55.575 mm) |
9.938 in (252.425 mm) |
9.375 in (238.125 mm) |
Red | Cellulose Media |
|
SPA-2334
|
1.938 in (49.225 mm) |
9.250 in (234.95 mm) |
8.813 in (223.85 mm) |
Red | Cellulose Media |
|
SPA-2342
|
1.938 in (49.225 mm) |
8.938 in (227.025 mm) |
7.750 in (196.85 mm) |
Red | Cellulose Media |
|
SPA-2360
|
2.000 in (50.8 mm) |
9.500 in (241.3 mm) |
6.938 in (176.225 mm) |
Red | Cellulose Media |
|
SPA-2364
|
1.750 in (44.45 mm) |
11.500 in (292.1 mm) |
8.250 in (209.55 mm) |
Red | Cellulose Media |
|
SPA-2370
|
1.813 in (46.05 mm) |
11.563 in (293.7 mm) |
7.938 in (201.625 mm) |
Red | Cellulose Media |
|
SPA-2374
|
2.375 in (60.325 mm) |
12.500 in (317.5 mm) |
5.250 in (133.35 mm) |
Red | Cellulose Media |
|
SPA-2381
|
1.625 in (41.275 mm) |
10.438 in (265.125 mm) |
7.250 in (184.15 mm) |
Red | Cellulose Media |
|
SPA-2385
|
2.625 in (66.675 mm) |
10.500 in (266.7 mm) |
9.938 in (252.425 mm) |
Red | Cellulose Media |
|
SPA-2394
|
1.750 in (44.45 mm) |
13.688 in (347.675 mm) |
11.688 in (296.875 mm) |
Red | Cellulose Media |
|
SPA-2395
|
1.813 in (46.05 mm) |
11.938 in (303.225 mm) |
6.750 in (171.45 mm) |
Red | Cellulose Media |
|
SPA-2402
|
2.063 in (52.4 mm) |
10.500 in (266.7 mm) |
8.688 in (220.675 mm) |
Red | Cellulose Media |
|
SPA-2409
|
1.313 in (33.35 mm) |
8.813 in (223.85 mm) |
6.625 in (168.275 mm) |
Red | Cellulose Media |
|
SPA-2439
|
1.875 in (47.625 mm) |
11.000 in (279.4 mm) |
8.813 in (223.85 mm) |
Red | Cellulose Media |
|
SPA-2448
|
1.750 in (44.45 mm) |
10.313 in (261.95 mm) |
8.938 in (227.025 mm) |
Red | Cellulose Media |
|
SPA-2457
|
2.250 in (57.15 mm) |
9.563 in (242.9 mm) |
8.688 in (220.675 mm) |
Red | Cellulose Media |
|
SPA-2460
|
1.500 in (38.1 mm) |
14.250 in (361.95 mm) |
9.125 in (231.775 mm) |
Red | Cellulose Media |
|
SPA-2462
|
1.813 in (46.05 mm) |
12.750 in (323.85 mm) |
9.813 in (249.25 mm) |
Red | Cellulose Media |
|
SPA-2468
|
1.938 in (49.225 mm) |
9.625 in (244.475 mm) |
7.375 in (187.325 mm) |
Red | Cellulose Media |
|
SPA-2472
|
2.125 in (53.975 mm) |
10.188 in (258.775 mm) |
5.750 in (146.05 mm) |
Red | Cellulose Media |
|
SPA-2478
|
1.188 in (30.175 mm) |
11.313 in (287.35 mm) |
11.313 in (287.35 mm) |
Red | Cellulose Media |
|
SPA-2498
|
1.938 in (49.225 mm) |
11.938 in (303.225 mm) |
7.625 in (193.675 mm) |
Red | Cellulose Media |
|
SPA-2966
|
1.250 in (31.75 mm) |
10.375 in (263.525 mm) |
10.250 in (260.35 mm) |
Red | Cellulose Media |
|
SPC-1001
|
0.938 in (23.825 mm) |
10.125 in (257.175 mm) |
4.000 in (101.6 mm) |
White | Cellulose Media |
|
SPC-1010
|
0.813 in (20.65 mm) |
5.938 in (150.825 mm) |
2.938 in (74.625 mm) |
White | Cellulose Media |
|
SPC-1011
|
0.875 in (22.225 mm) |
8.875 in (225.425 mm) |
7.313 in (185.75 mm) |
White | Cellulose Media |
|

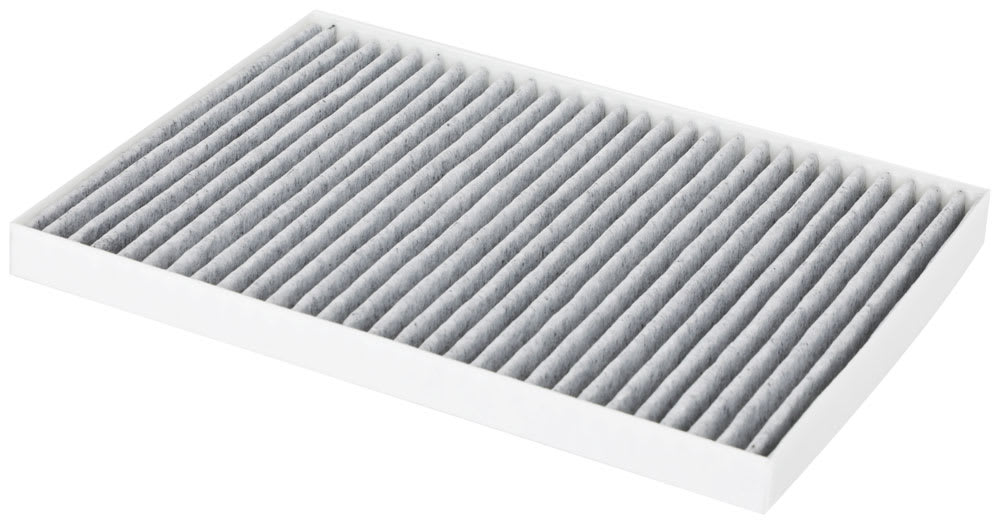

SPC-1012
|
0.750 in (19.05 mm) |
9.313 in (236.55 mm) |
6.875 in (174.625 mm) |
Gray | Carbon Activated Media |
|
SPC-2000
|
1.188 in (30.175 mm) |
8.500 in (215.9 mm) |
7.625 in (193.675 mm) |
Gray | Cellulose Media |
|
SPC-2001
|
0.875 in (22.225 mm) |
9.188 in (233.375 mm) |
8.813 in (223.85 mm) |
White | Cellulose Media |
|
SPC-2002
|
0.625 in (15.875 mm) |
8.375 in (212.725 mm) |
8.313 in (211.15 mm) |
White | Cellulose Media |
|
SPC-2003
|
0.750 in (19.05 mm) |
8.563 in (217.5 mm) |
7.813 in (198.45 mm) |
White | Cellulose Media |
|
SPC-2005
|
0.750 in (19.05 mm) |
8.063 in (204.8 mm) |
8.000 in (203.2 mm) |
White | Cellulose Media |
|
SPC-2007
|
0.688 in (17.475 mm) |
8.813 in (223.85 mm) |
7.938 in (201.625 mm) |
White | Cellulose Media |
|
SPC-2013
|
1.000 in (25.4 mm) |
8.438 in (214.325 mm) |
7.688 in (195.275 mm) |
White | Cellulose Media |
|

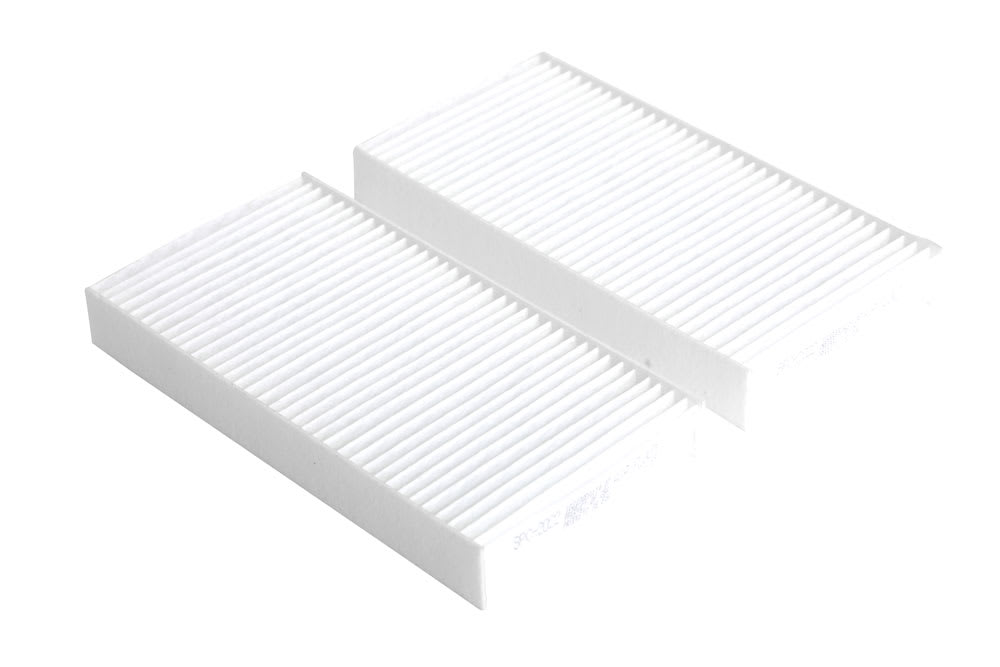

SPC-2022
|
1.125 in (28.575 mm) |
8.875 in (225.425 mm) |
4.375 in (111.125 mm) |
White | Cellulose Media |
|
SPC-2033
|
1.125 in (28.575 mm) |
8.250 in (209.55 mm) |
8.063 in (204.8 mm) |
White | Cellulose Media |
|
SPC-2038
|
1.125 in (28.575 mm) |
8.750 in (222.25 mm) |
7.938 in (201.625 mm) |
White | Cellulose Media |
|
SPC-2040
|
1.250 in (31.75 mm) |
9.438 in (239.725 mm) |
7.000 in (177.8 mm) |
Gray | Cellulose Media |
|
SPC-2044
|
1.188 in (30.175 mm) |
9.625 in (244.475 mm) |
9.313 in (236.55 mm) |
White | Cellulose Media |
|
SPC-2049
|
1.125 in (28.575 mm) |
10.188 in (258.775 mm) |
8.063 in (204.8 mm) |
White | Cellulose Media |
|
SPC-2050
|
0.688 in (17.475 mm) |
10.875 in (276.225 mm) |
8.813 in (223.85 mm) |
White | Cellulose Media |
|
SPC-2055
|
1.063 in (27 mm) |
8.625 in (219.075 mm) |
8.125 in (206.375 mm) |
White | Cellulose Media |
|
SPC-2058
|
1.125 in (28.575 mm) |
8.750 in (222.25 mm) |
7.563 in (192.1 mm) |
White | Cellulose Media |
|
SPC-2059
|
1.125 in (28.575 mm) |
9.438 in (239.725 mm) |
7.813 in (198.45 mm) |
White | Cellulose Media |
|
SPC-3012
|
1.188 in (30.175 mm) |
10.375 in (263.525 mm) |
9.563 in (242.9 mm) |
White | Cellulose Media |
|

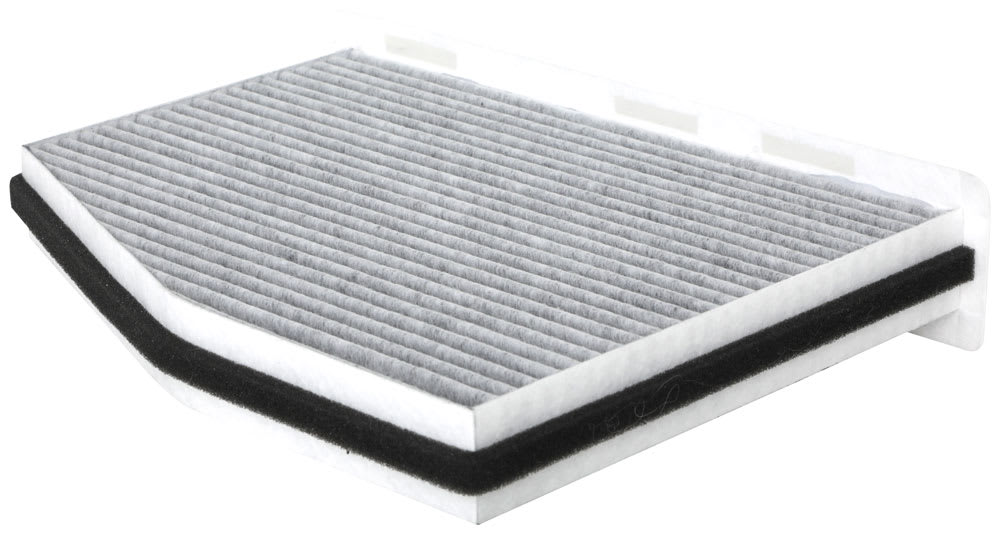

SPC-3013
|
1.250 in (31.75 mm) |
10.750 in (273.05 mm) |
8.063 in (204.8 mm) |
Gray | Cellulose Media |
|
HPR10022
|
1.188 in (30.175 mm) |
11.438 in (290.525 mm) |
9.063 in (230.2 mm) |
Red | Non-woven Synthetic |
|
HPR10165
|
1.250 in (31.75 mm) |
8.875 in (225.425 mm) |
7.688 in (195.275 mm) |
Red | Non-woven Synthetic |
|
HPR10169
|
1.063 in (27 mm) |
10.063 in (255.6 mm) |
9.375 in (238.125 mm) |
Red | Non-woven Synthetic |
|
HPR10171
|
1.000 in (25.4 mm) |
11.500 in (292.1 mm) |
7.875 in (200.025 mm) |
Red | Non-woven Synthetic |
|
HPR10262
|
1.313 in (33.35 mm) |
10.500 in (266.7 mm) |
9.938 in (252.425 mm) |
Red | Non-woven Synthetic |
|
HPR10348
|
0.969 in (24.613 mm) |
11.688 in (296.875 mm) |
8.313 in (211.15 mm) |
Red | Non-woven Synthetic |
|
HPR10464
|
1.188 in (30.175 mm) |
10.438 in (265.125 mm) |
10.438 in (265.125 mm) |
Red | Non-woven Synthetic |
|
HPR3901
|
1.125 in (28.575 mm) |
13.500 in (342.9 mm) |
6.688 in (169.875 mm) |
Red | Non-woven Synthetic |
|
HPR3914
|
1.188 in (30.175 mm) |
16.000 in (406.4 mm) |
8.000 in (203.2 mm) |
Red | Non-woven Synthetic |
|
HPR3915
|
1.750 in (44.45 mm) |
6.688 in (169.875 mm) |
6.688 in (169.875 mm) |
Red | Non-woven Synthetic |
|
HPR4309
|
1.313 in (33.35 mm) |
11.000 in (279.4 mm) |
6.500 in (165.1 mm) |
Red | Non-woven Synthetic |
|
HPR5056
|
1.250 in (31.75 mm) |
11.375 in (288.925 mm) |
7.688 in (195.275 mm) |
Red | Non-woven Synthetic |
|
HPR5350
|
1.250 in (31.75 mm) |
9.438 in (239.725 mm) |
6.938 in (176.225 mm) |
Red | Non-woven Synthetic |
|
HPR6479
|
1.625 in (41.275 mm) |
10.688 in (271.475 mm) |
7.875 in (200.025 mm) |
Red | Non-woven Synthetic |
|
HPR7421
|
1.125 in (28.575 mm) |
11.500 in (292.1 mm) |
6.000 in (152.4 mm) |
Red | Non-woven Synthetic |
|
HPR7440
|
1.063 in (27 mm) |
11.375 in (288.925 mm) |
9.625 in (244.475 mm) |
Red | Non-woven Synthetic |
|
HPR7597
|
1.563 in (39.7 mm) |
9.438 in (239.725 mm) |
7.125 in (180.975 mm) |
Red | Non-woven Synthetic |
|
HPR7626
|
1.313 in (33.35 mm) |
9.563 in (242.9 mm) |
8.125 in (206.375 mm) |
Red | Non-woven Synthetic |
|
HPR7640
|
1.688 in (42.875 mm) |
11.750 in (298.45 mm) |
10.750 in (273.05 mm) |
Red | Non-woven Synthetic |
|
HPR8040
|
1.125 in (28.575 mm) |
8.938 in (227.025 mm) |
6.625 in (168.275 mm) |
Red | Non-woven Synthetic |
|
HPR8133
|
1.250 in (31.75 mm) |
10.750 in (273.05 mm) |
6.750 in (171.45 mm) |
Red | Non-woven Synthetic |
|
HPR8602
|
1.188 in (30.175 mm) |
14.063 in (357.2 mm) |
7.250 in (184.15 mm) |
Red | Non-woven Synthetic |
|
HPR8755
|
1.625 in (41.275 mm) |
12.188 in (309.575 mm) |
9.719 in (246.863 mm) |
Red | Non-woven Synthetic |
|
HPR8817
|
1.438 in (36.525 mm) |
11.500 in (292.1 mm) |
8.563 in (217.5 mm) |
Red | Non-woven Synthetic |
|
HPR8918
|
0.875 in (22.225 mm) |
12.250 in (311.15 mm) |
9.063 in (230.2 mm) |
Red | Non-woven Synthetic |
|
HPR8997
|
1.250 in (31.75 mm) |
10.000 in (254 mm) |
7.063 in (179.4 mm) |
Red | Non-woven Synthetic |
|
HPR9054
|
1.313 in (33.35 mm) |
9.438 in (239.725 mm) |
8.500 in (215.9 mm) |
Red | Non-woven Synthetic |
|
HPR9332
|
1.000 in (25.4 mm) |
11.813 in (300.05 mm) |
7.125 in (180.975 mm) |
Red | Non-woven Synthetic |
|
HPR9360
|
1.250 in (31.75 mm) |
12.500 in (317.5 mm) |
7.625 in (193.675 mm) |
Red | Non-woven Synthetic |
|
HPR9361
|
1.000 in (25.4 mm) |
11.438 in (290.525 mm) |
6.438 in (163.525 mm) |
Red | Non-woven Synthetic |
|
HPR9392
|
1.188 in (30.175 mm) |
10.000 in (254 mm) |
6.813 in (173.05 mm) |
Red | Non-woven Synthetic |
|
HPR9401
|
1.750 in (44.45 mm) |
13.938 in (354.025 mm) |
9.438 in (239.725 mm) |
Red | Non-woven Synthetic |
|
HPR9482
|
1.000 in (25.4 mm) |
11.375 in (288.925 mm) |
5.938 in (150.825 mm) |
Red | Non-woven Synthetic |
|
HPR9564
|
0.938 in (23.825 mm) |
13.500 in (342.9 mm) |
5.938 in (150.825 mm) |
Red | Non-woven Synthetic |
|
HPR9683
|
1.250 in (31.75 mm) |
14.000 in (355.6 mm) |
6.750 in (171.45 mm) |
Red | Non-woven Synthetic |
|
HPR9687
|
1.000 in (25.4 mm) |
11.375 in (288.925 mm) |
8.500 in (215.9 mm) |
Red | Non-woven Synthetic |
|
HPR9997
|
1.000 in (25.4 mm) |
8.750 in (222.25 mm) |
8.563 in (217.5 mm) |
Red | Non-woven Synthetic |
